Product Submittal: Please refer to the product submittal for additional details and important installation notes: Roundup Plus Saddle Supports Submittal
• Do NOT use outdoors or vertically
• See important note below
If using saddle supports, insulation can compress at these locations, and condensation may occur if the compressed insulation thickness is less than that required to prevent condensation. For EPDM insulation, a good "rule of thumb" is to assume the insulation will compress 50% over time. Therefore, if using saddle supports, the installed insulation thickness should be at least twice the minimum thickness for what is required to prevent condensation.

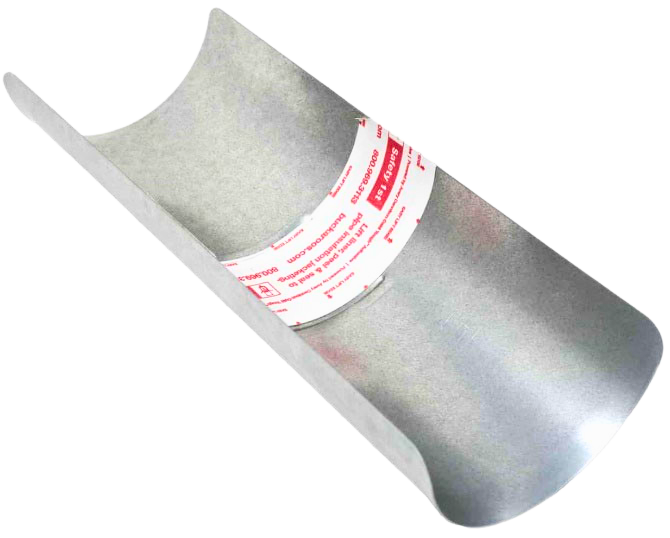

The Roundup Plus Saddle is a product designed to better support insulated piping by minimizing the compression of the insulation.
Round Corner Design: No more cuts, scrapes or bruises while handling the Roundup Plus Saddle.
Flared Edges: Flared outside edges protect the Saddles insulation from cutting the pipe insulation.
New Peel & Stick Tape: Aggressive acrylic self-stick tape between the ribs to secure the Saddle to the pipe insulation.
O.D. Size Marked on Each Saddle: This provides easy Saddle identification in the warehouse and on the job site.
Fewer Leak Opportunities: By eliminating one brazed joint per coupling and eliminating field brazed elbows, the potential number of leak points is greatly reduced.
