Product Submittal: Please refer to the product submittal for additional details and important installation notes: RYNO+ EPDM Insulated Copper Coils Submittal

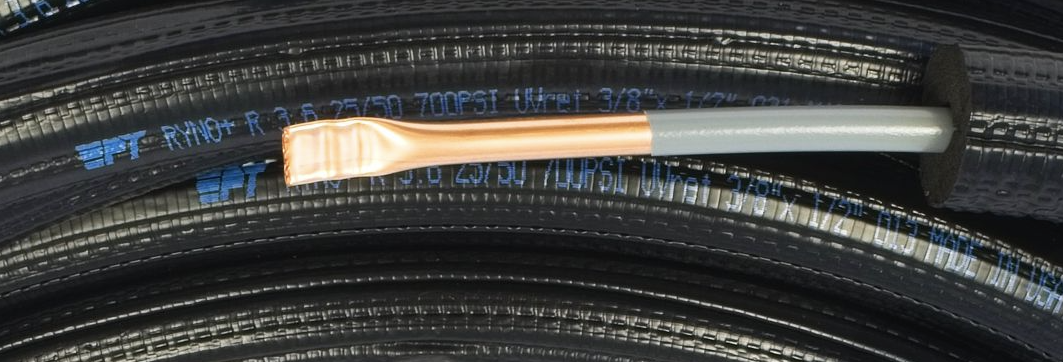

Reftekk has partnered with PTubes to bring the industry an optimized line set product with three standout layers of protection:
• Durable + UV Resistant Insulation Coating
• High-Temperature, Closed-Cell EPDM Insulation
• Composite Sheathing on Copper Tubing
While suitable for a wide variety of uses, PT RYNO+® EPDMTM Insulated Copper Coils are the preferred choice for use in the following applications:
• UV exposure (exterior use)
• Harsher or humid environments (southern, coastal, etc.)
• Hot fluid temperatures (VRV/VRF systems, etc.)
• Below-ambient fluid temperatures (VRV/VRF systems, etc.)
Continuous 257°F Temperature Rating: Hot gas lines in VRV/VRF systems can operate at temperatures up to 248°F. When EPDM can continuously handle this temperature, why risk insulation degradation/failure with products that can only handle these temperatures intermittently?
Closed-Cell Elastomeric Insulation - The Only Choice for Below-Ambient Fluid Temperatures: In the event the outer jacket gets damaged, the EPDM's closed-cell elastomeric structure will act as a barrier to prevent water from intruding and spreading throughout/underneath the insulation. Conversely, open-cell or fiberglass insulations would allow water intrusion, leading to insulation failure and other serious issues.
Top-Tier Corrosion Resistance: Insulation should always be installed to prevent moisture intrusion under the insulation. Should moisture intrusion occur, some insulation materials will leach corrosion-causing chemicals whereas EPDM does not. Additionally, the surrounding environment could contain corrosion-causing chemicals that could intrude with the moisture simultaneously. RYNO+® incorporates a composite sheathing on the copper tubing to prevent direct contact with potential corrosion-causing chemicals.
Kink Resistant: State of the art machinery assures precision tubes for fewer kinks, better flares, and higher quality brazes.
Built-In UV Resistance: The outer jacket provides enhanced protection in direct sunlight applications. Additionally, if the underlying insulation were to get exposed, the EPDM rubber has inherent UV resistant properties.
Enhanced Durability and Protection: Proprietary elastomeric insulation is coated with a protective outer jacket to reduce damage before, during, and after installation. There is no need for additional jacketing for outdoor environments, unless required by code.
Suitable for Modern Refrigerants:
• R410A
• A2L such as R-32 and R-454B
• Sub-critical CO2
• And others
Domestically Manufactured: RYNO+® EPDM products are proudly manufactured in the USA.
Manageable Lead Times: Most orders can be expected to ship in four weeks, many of which ship in a matter of days.
Warranty:
• RYNO+® Insulation and jacket: 5 years limited warranty
• Copper Tube: 10 years limited warranty
